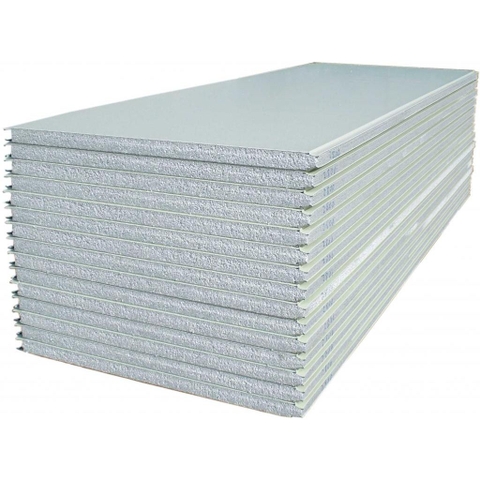

EPS bulkhead panel (Pensions students, workers, ...).
Can be reused when changing texture.
|
Material |
The top surface |
PPGI (12:35 ~ 0.5mm) |
|
Bottom surface |
PPGI (12:35 ~ 0.5mm) / (The rest are class when mounted to the ceiling or mounted PVC directly into brick wall) / Inox |
|
|
Insulation in between |
EPS 12 to 20kg / m3 |
|
|
The size |
Width (mm) |
Suffering useful: 1,000 mm |
|
Length (m) |
≤ 12m (in limited transport) |
|
|
Where longer allows 12m |
||
|
Thickness (mm) |
50mm, 75mm,100mm~200mm |
|
|
May change according to customer requirements |
Each warehouse, depending on the temperature for each different thickness entire panel EPS systems linked together by GAM yin-yang
50mm: user installation of clean rooms for pharmaceutical, veterinary, food, electronics factory (15 ° C ÷ 25 ° C)
75mm ÷ 100mm: archive for horticulture, food, processed cheese, milk, chocolate (15 ° C ÷ -10 ° C)
÷ 150mm 175mm: for cold storage (-15 ° C ÷ -20 ° C)
÷ 200mm 250mm: warehouse for frozen (-25 ° C ÷ -40 ° C)
