1. Structure of the frame assembly:

- Column manufactured housing: made of steel C according to the order form for the assembly to mounting corrugated foam.
- Truss Modular Home: Using galvanized steel box.
- Purlin roof assembly: using galvanized steel box.

The frame assembly house built at the factory, which is broken down into components to facilitate the handling and at work. Or if the terrain does not allow it to transport materials and manufacturing craft at work.

Prefab steel frame house can be painted rust, painted or galvanized cold or hot dip galvanized electrolytic custom customer requirements.

2. The roof assembly: Using Sun roof (Ton + PU + PP) or (Ton + sponge + Sun), sound insulation.

3. Removable cover, room dividers: Use (+ Foam + corrugated sheet) soundproof insulation. The thickness of 50mm to 100mm product.

4. Door, window docking:

Door Panel Door foam sheet, glass or plastic doors aluminum doors steel core.

Window plastic door Korea, glass or plastic doors aluminum doors steel core.

5. The ceiling assembly: Use plastic ceiling or plaster ceiling, depending on customer requirements.

6. Accessories: Bolts linked with foundation beams - frames - roof edging, roof tiles, rainwater drainage pipe, PVC pipe D76.

Image area operator:

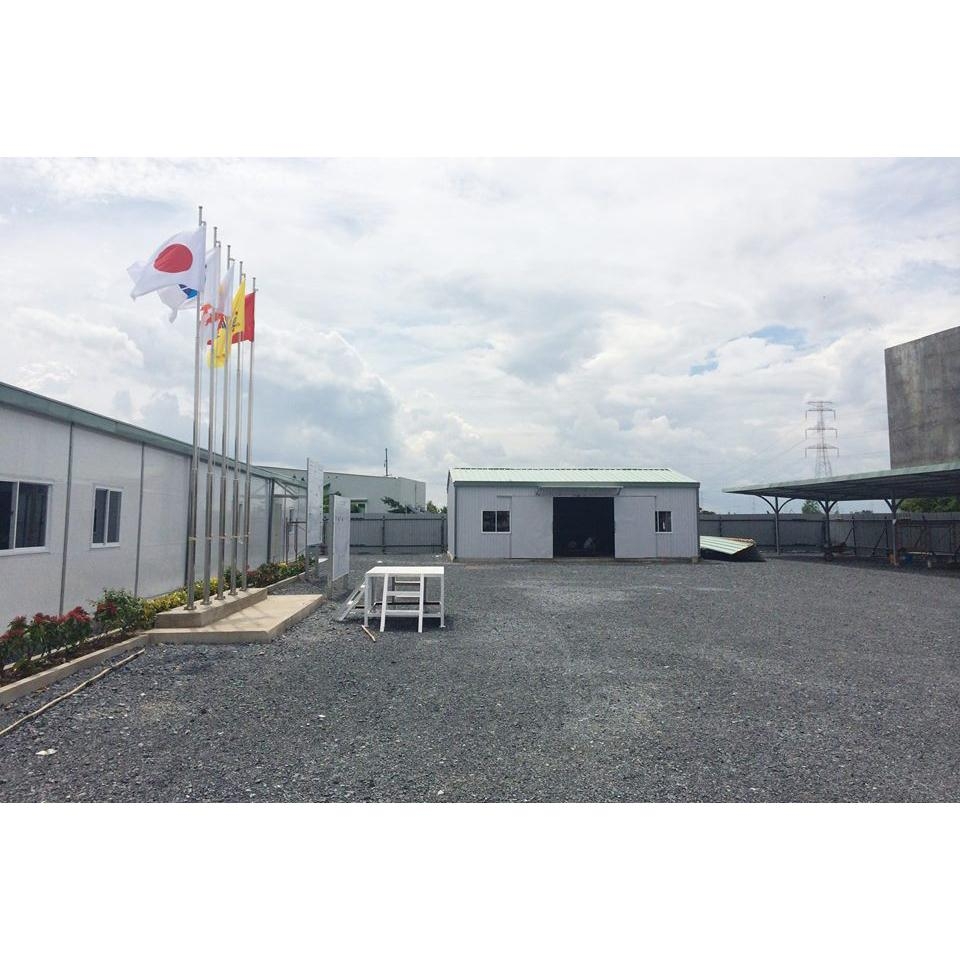

Executive Office

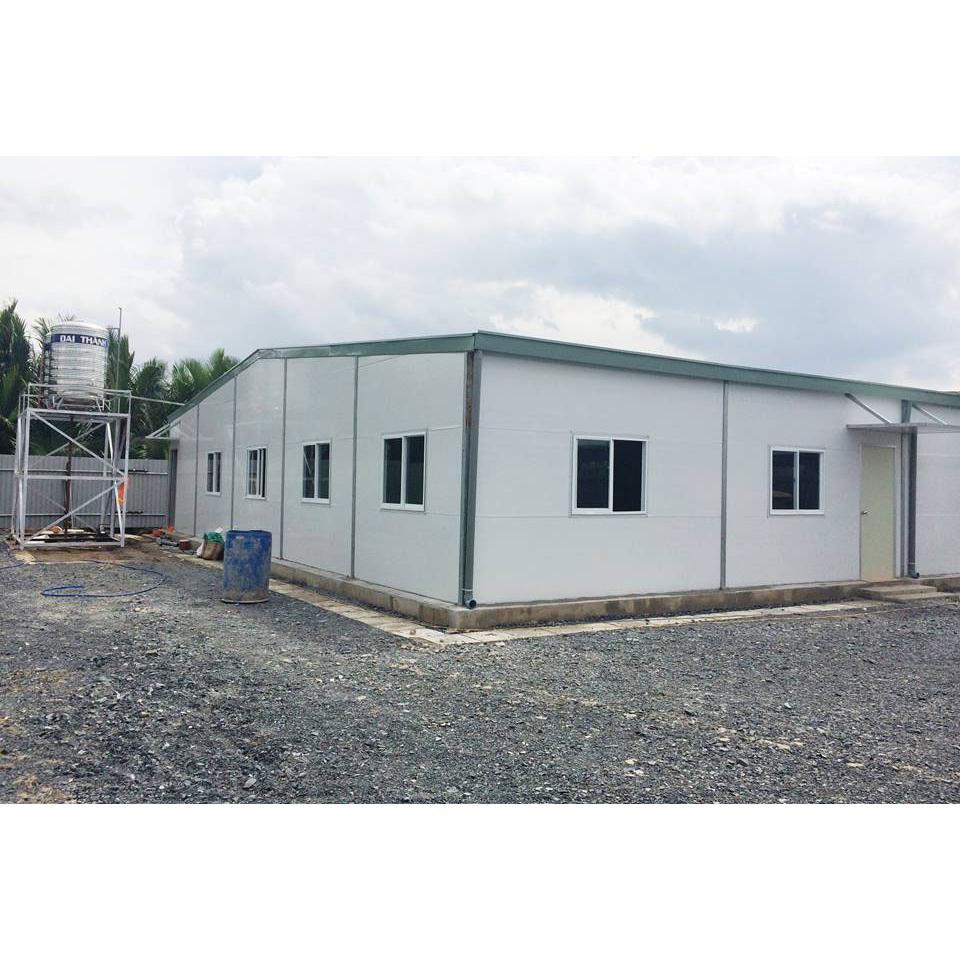

Executive Office

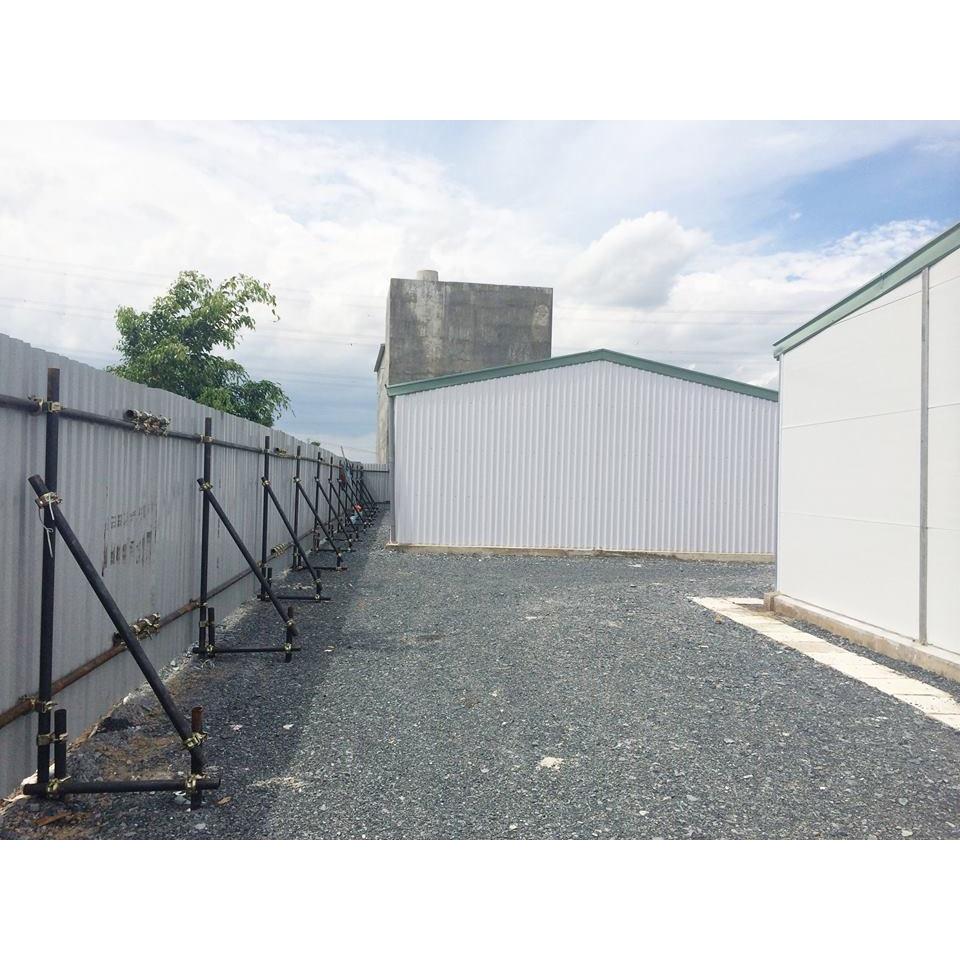

System protection walls

Garage

The space inside the assembly
